Bends VB System

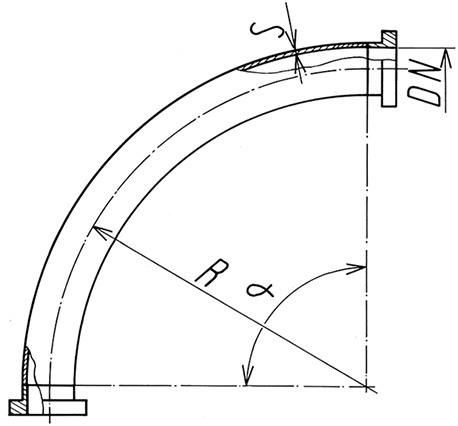

α     90°   45°   30°   15°
DN R S Art. Nr. / Part no. kg Art. Nr. / Part no. kg Art. Nr. / Part no. kg Art. Nr. / Part no. kg
50 – 3" 135 5,0 202.30.90.050.04 6,0 202.30.45.050.04 4,0
50 – 3" 500 5,0 202.30.90.050.01 7,2 202.30.45.050.01 4,5 202.30.30.050.01 2,4 202.30.15.050.01 2,1
65 – 3" 160 2,9 202.30.90.065.02 1,5 202.30.45.065.02 2,1
65 – 3" 800 3,2 202.30.90.065.01 8,0 202.30.45.065.01 5,0 202.30.30.065.01 3,8 202.30.15.065.01 2,0
76 – 3" 250 3,2 202.30.90.076.02 6,0 202.30.45.076.02 3,0
76 – 3" 800 3,2 202.30.90.076.01 12,0 202.30.45.076.01 7,0 202.30.30.076.01 4,5 202.30.15.076.0 2,0
100 – 4" 250 6,3 101.09.10.001 8,4 202.40.45.100.02 4,0
100 – 4" 1000 4,0 202.45.90.100.01 16,0 202.40.45.100.01 8,0 202.40.30.100.01 5,0 202.40.15.100.01 2,0
100 – 4"½ 250   101.15.10.010 10,1 101.60.10.014 5,6
100 – 4"½ 1000 4,0 202.45.90.100.01 16,0 202.45.45.100.01 8,0 202.45.30.100.01 5,3 202.45.15.100.01 2,7
125 – 5"½ 180   103.36.10.182 11,5
125 – 5"½ 500 7,1 202.55.90.125.02 22,0 202.55.45.125.02 13,9 202.55.30.125.02 7,9
125 – 5"½ 1000 4,0 202.55.90.125.01 22,0 202.55.45.125.01 12,1 202.55.30.125.01 8,9 202.55.15.125.01 5,8
125 – 5"½ 1000 7,1 202.55.90.125.06 39,5 202.55.45.125.06 20,2 202.55.30.125.06 14,1 202.55.15.125.06 7,9
150 – 6" 230 8,8 202.60.90.150.04 13,0 202.60.45.150.04 8,0
150 – 6" 500 6,3 202.60.90.150.0 12,2 202.60.45.150.02 11,2
150 – 6" 1000 4,5 202.60.90.150.01 35,0 202.60.45.150.01 20,0 202.60.30.150.01 12,0 202.60.15.150.01 6,0

Lenghts, diameters, thicknesses in mm
