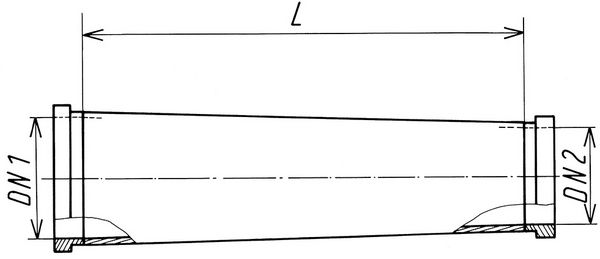

straight tapered pipes VB System

L   500   1000   1500
DN 1 DN 2 Art. Nr. / Part no. kg Art. Nr. / Part no. kg Art. Nr. / Part no. kg
65 – 3" 50 – 3"     211.065.30.050.30.10 10,0
100 – 4" 50 – 3"     211.100.40.050.30.10 16,0
100 – 4" 65 – 3"     211.100.40.065.30.10 16,0
100 – 4" 76 – 3" 211.100.40.076.30.05 7,0 211.100.40.076.30.10 16,0
100 – 4"½ 50 – 3"     211.100.45.050.30.10 16,0
100 – 4"½ 65 – 3"     211.100.45.065.30.10 13,0
100 – 4"½ 76 – 3"     211.100.45.076.30.10 16,0
125 – 5" 100 – 4" 211.125.50.100.40.05 9,0 211.125.50.100.40.10 18,0 211.125.50.100.40.15 27,0
125 – 5"½ 65 – 3"         211.125.55.065.30.15 24,0
125 – 5"½ 100 – 4" 211.125.55.100.40.05 9,0 211.125.55.100.40.10 18,0 211.125.55.100.40.15 27,0
125 – 5"½ 100 – 4"½ 211.125.55.100.45.05 10,7 211.125.55.100.45.10 20,2 211.125.55.100.45.15 28,4
150 – 6" 125 – 5"½ 211.150.60.125.55.05 15,0 211.150.60.125.55.10 22,0 211.150.60.125.55.15 35,0

Other lengths on request

Lengths, diameters, thicknesses in mm
